Grain harvester VECTOR 425

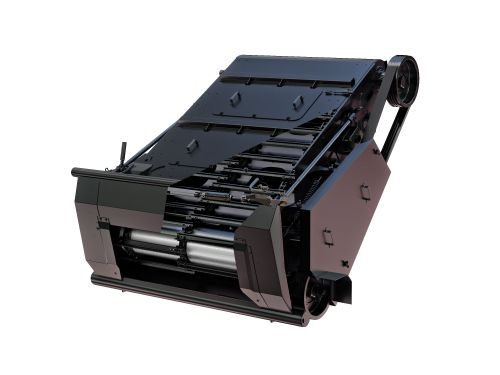

New extended feeder house provide a better view of the cutting bar unit and make maize harvesting easier as no changes are required. In addition, increased up to 3000 kg payload gave the machine the ability to work with wide adapters, which was
an important factor in increasing the productivity of the harvester on fields with low productivity.

Longitudinal-lateral spring copying is a simple and reliable decision for effective use of the whole reaper width on uneven fields.

The grain tank transforming roof allows to increase its capacity from 4.5 up to 6m³, or reduce the harvester dimensions, if required.

Due to pulsers, the harvester easily unloads wet grain, what leads to increasing of shift efficiency.

VECTOR harvesters are equipped with YaMZ and Cummins modern 6-cylinder turbo-charged diesel engines. These engines have optimal performance, torque reserve of 20% at peak loads, and economy fuel consumption.

16 hours without refueling

Economical engine together with 540L fuel tank allow to work up to 16 hours without refueling.

Assured forward moving

VECTOR is equipped with hydraulic-static transmission providing stage-free speed adjustment within any of 3 gears. The range of working gears allows to load the harvester when working on low-crop fields. The harvesters versions with full drive and semi-caterpillar chassis guarantee assured and reliable operation in any conditions.

The correspondent frontal equipment is required for such high-efficient harvesters. Everybody knows that the harvesting starts from reaper. Therefore, the selection of right decision represents the most important aspect when selecting the harvester. Universal grain reaper Power Stream.

The reaper hydraulic drive allows to adjust its rpm without gears providing optimal and uniform mass feeding for the high productivity purpose. It is easy and reliable mechanism with minimal adjustments

Reaper rpm and harvester drive speed synchronization system makes easier the harvester operator’s work, and reduces the requirements to his qualification. As the result, increased harvesting productivity and reduced losses. Connecting areas of the reaper beams and rake elements are reliably protected from winding of long-stem plants.

The large diameter worm prevents the winding of high-stem crops. Pins between the worm threads arranged along the coverage width promote the mass feeding even when harvesting peas and very low barley. There are grooves on the pins allowing their careful braking in case of getting the rocks.

Schumacher cutting apparatus operates smoothly, precisely and without wear. High cutting rpm and increased travel of knives increase the cut quality and, respectively, the harvesting productivity, especially in adverse conditions. The knives are attached with bolts, what considerably reduces the time of their replacement. In order to harvest the laid crops on uneven soils, the stem-lifters, which preliminary lift the stems from ground, are used to reduce the losses (included into basic set).

In order to harvest the corn seeds, the thresher re-equipment set and 6- or 8-row snapper is proposed. The device provides harvesting of seeds with simultaneous shredding and throwing of leaf-stem mass over the field.

The 8-row reaper especially designed for harvesting the sunflower shall provide the completeness crop harvesting at minimum rate of 98%, what is not achievable when using another type attachments. The reapers reliably operate in any agricultural conditions, including stunted sunflower hybrids.

In order to achieve maximum effectiveness when harvesting the easily-damaged cultures, the additional equipment is proposed. Rape attachment for reapers 6/7/9 m will reduce losses at harvesting by 3-4 times and additionally pick-up 30-100 kg of grain from 1 hectare of field, depending of crop capacity.

Losses when harvesting soya and other creeping cultures shall be dramatically reduced in case of using the reaper with flexible cutting apparatus able to copy the field micro-relief. The possibility of rigid knife fixing is foreseen in order to harvest traditional erect cultures.

In case of separate harvesting, the harvesters are equipped with pickup platforms having width 3.4 or 4.3 m. As the reaper, this device is able to copy the field relief in longitudinal and later directions. Reliable protection of pickup elements from clogging, winding and blowing-off the mass by wind provides its stable operation even in adverse conditions.

For the harvest sparse, undersized bread essential grain conveyor header Draper Stream 900 whith width of 900mm. When using it, the rate of harvesting is increased to 10-15 %, which allows to optimize the download of the thresher. Special wheels, performing the functions of copying field relief and support of the header, may also be moved the transport position, eliminating the need to use transport trucks.
